straight type G.W. | X series
X-25
plunge grindingINTRODUCTION

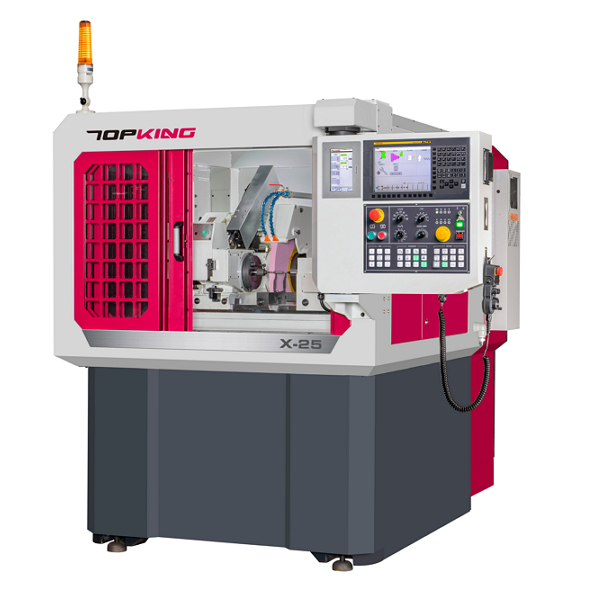

The X series CNC cylindrical grinding machine integrates advanced design and innovative features, offering efficient, precise, and flexible machining solutions. This grinder can meet various processing needs and ensure high-quality results for small or large components.The X-axis and Z-axis of the X series CNC cylindrical grinding machine adopt a cross-slide design, effectively reducing the footprint and axial travel, saving production space. The high-rigidity machine body and the heavy-duty spindle and tailstock significantly increase the component load capacity.
The high rigidity machine body ensures stability during grinding, providing high-quality machining results. The operating system is equipped with a high-performance CNC control system and a built-in graphical user interface (GUI), making setup easy and enabling users to operate with ease. The grinding applications are extensive, offering customers the most suitable machining solutions.
| CAPACITY
Swivel Over Table: Ø250 mm
Distance Between Center: 200 mm
Max. Grinding Dia.: Ø250 mm
Max. Grinding Length: 150 mm
MACHINE FEATURE

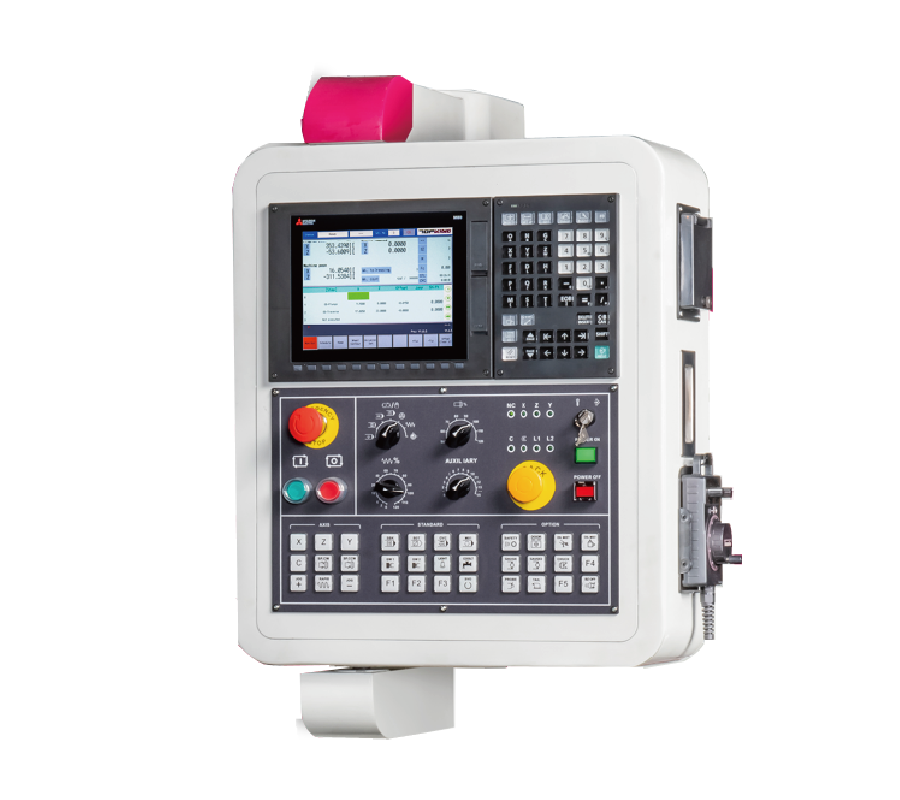

USER FRIENDLY OPERATION SYSTEM
The built-in advanced CNC control system is equipped with GUI. The operator can divide the complex component into several grinding processes through the guidance of the graphic, and simplify the process editing of grinding, and dressing in a numerical way. No complicated programming (G code, M code) is required, and the most convenient operating environment is provided.
RIGID MACHINE BASE
■ High rigidity machine base made of Meehanite cast iron through annealing and aging treatment.
■ Slideway though high-frequency hardening and precision grinding process. Machine base with stable material and strengthen construction for deformation-free and outstanding wear resistance.
WORK TABLE
■ The work table is permanently bolted to the machine. The cross slide design is adopted to reduce the travels. It can improve working speed and precision stability.
CROSS-SLIDER DESIGN
■ X axis and Z axis are design as cross-slider to reduce machine space.■ Two axes cover by enclosed telescopic covers. To protect the transmission structure and prevent contamination from grinding debris and coolant.
FLEXIBLE FEED DESIGN

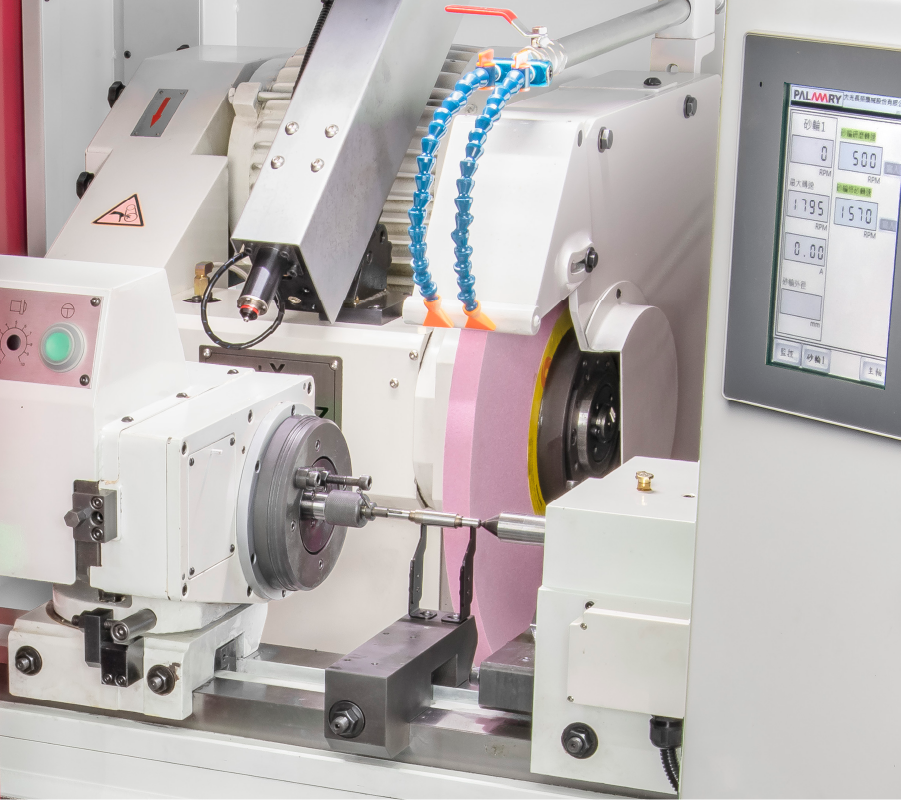

■ X-25 series adopts precise linear guides and ball screw design for the two-axis movement. The linear guides are designed to be wear-resistant and have low-friction properties, ensuring that the axis seat moves smoothly. The ball screw can handle high loads and has low backlash, which allows for a quick and flexible feed mode, achieving the required dimensions rapidly. This integrated combination offers a fast and responsive feed mode, delivering outstanding machining quality for small component.WHEELHEAD CONSTRUCTION
■ Bearing type of G.W. spindle adopts precision bearings, which has a long service life and is relatively easy to replace, repair and maintain.
■ The G.W. spindle is made of high-quality alloy steel SNCM-220, which has undergone multiple treatments such as normalization, quenching and tempering, carburizing heat treatment, and cryogenic treatment. Afterwards, precision grinding and mirror treatment are carried out, and the surface hardness reaches above HRC62°. Guarantee no deformation, wear resistance, high precision forever.

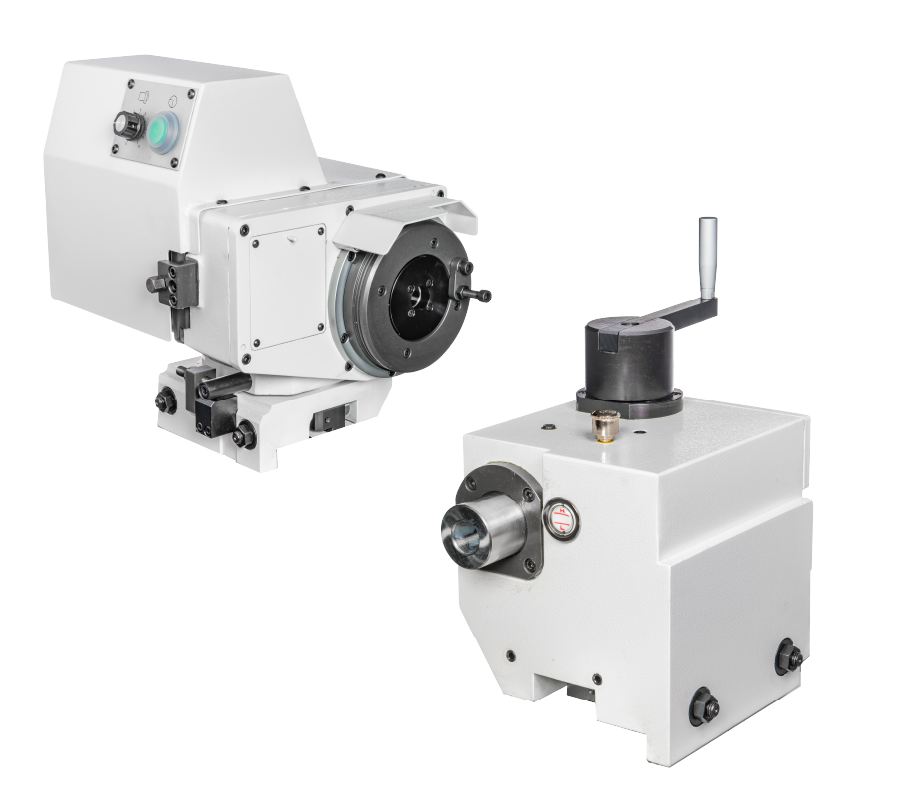

WORKHEAD AND TAILSTOCK
■ The workhead is driven by a servo motor with step-less variable speed change.
■ Hydraulic tailstock (opt.) with support for easy operation.
■ Both the workhead and the tailstock are designed with flat air pressure design, which is easy to move, reduces friction and increase using life.
■ The cooling system is installed in the center to prevent the contact surface of the center hole from being heated and deformed.

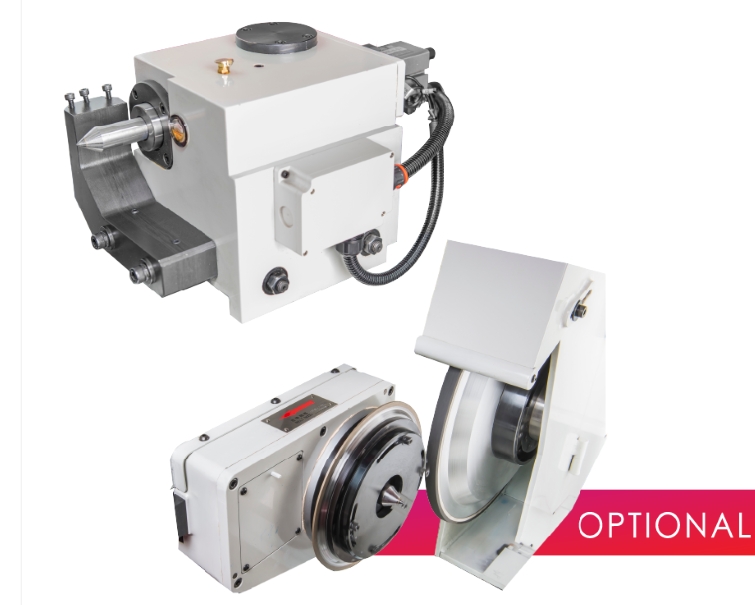

DIAMOND TOOL HOLDER
( tailstock mounted type)
■ Standard dressing device is mounted on tailstock
■ Diverse dressing device is available, adaptable to the requirements of the component.
■ ptional: Diamond roller Dressing Device (worktable mounted type)
GRINDING CYCLE
SPECIFICATION
Capacity | |
---|---|
Swing Over Table | Ø270 mm |
Distance Between Centers | 200 mm |
Max. Grinding Diameter | Ø250 mm |
Max. Grinding Length | 150 mm |
Max. Load Held Between Centers | 60 kg |
Center Height (from table to center tip) | 135 mm |
Grinding Wheel | |
Size (O.D. x Width x I.D.) | Ø510 x 50 x Ø127 mm |
Linear Velocity | 45 m/sec |
Worktable | |
Swiveling Angle | -1° ~ +10° |
Workhead | |
Swiveling Angle | -30° ~ +90° |
Center Tapper | MT. No. 3 |
Spindle Speed | 10 ~ 300 rpm |
Max. Load of Spindle (tool holder included) | 15 kgs (Max. Length: 100 mm) |
Tailstock | |
Center Tapper | MT. No. 3 |
Center Moving | Manual type |
Tailstock Stroke | 35 mm |
X-axis Travel | |
Max. Travel | 210 mm |
Rapid Feedrate Speed | 6000 mm/Min |
Auto. Feeding Speed | 0.001 ~ 2000 mm/Min |
Min. Feeding Setting | 0.001 mm |
Z-axis Travel | |
Max. Travel | 260 mm |
Rapid Feedrate Speed | 6000 mm/Min |
Auto. Feeding Speed | 0.001 ~ 2000 mm/Min |
Min. Feeding Setting | 0.001 mm |
Drive Motors | |
Grinding Wheel Spindle | 5.5 kW |
Workhead Spindle Motor (servo motor) | 0.85 kW |
Wheelhead Feed X-axis (servo motor) | 1.5 kW |
Table Feed X-axis (servo motor) | 1.5 kW |
Lubrication Hydraulic Motor | NIL |
Hydraulic Pump | NIL |
Coolant Pump | 0.18 kW |
Tank Capacities | |
Lubrication Tank (Guideway) | 0.7 L (Auto. Lubrication /LUBE Grease) |
Lubrication Tank (Optional) | 18 L |
Coolant Tank | 107 L |
Machine | |
Dimension | 2900 x 3360 x 2100 mm |
Net Weight | 3300 kg |
Center Height (from floor to center tip) | 1150 mm |
* The mentioned specifications & dimensions are subject to change without notice.
ACCESSORIES
STANDARD ACCESSORIES
■ CNC Controller (Brand: Mitsubishi) x 1set
■ Grinding Wheel and Flange x 1 set
■ Carbide Tipped Work Centers (2 pcs/set) x 1
■ Diamond Tool Holder ( tailstock mounted type) x 1 set (for X-25)
■ Linear Scale for X-axis x 1 set
■ Grinding Wheel Inverter x 1 set
■ Electric System x 1 set
■ Fully Enclosed Splash Guard x 1 set
■ Hydraulic System x 1 set
■ Coolant System x 1 set
■ Work Lamp x 1 set
■ Tools (Leveling pad) and Tool Box x 1 set
■ Hydraulic Tailstock
■ Cam-locked Driving Dogs
■ Work Holder 2 pcs/set
■ 2-point Steady Rest
■ Adjustable 3-point Steady Rest
■ Adjustable 3-jaw Scroll Chuck
■ Adjustable 4-jaw Scroll Chuck
■ Wheel Balancing Stand and Arbor
■ Auto. Grinding Wheel Balancer
■ Spare Grinding Wheel and Flange
■ Diamond Roller Dressing Device (worktable mounted type)
■ Diamond Roller Dressing Device (tailstock mounted type)
■ Touch Probe Gauge
■ Auto. In-Process Gauge
■ Gap Control
■ Linear Scale for Z-axis
■ Magnetic Coolant Separator
■ Paper Filter
■ Oil Mist Collector
