CNC Angular grinding
X-2540A

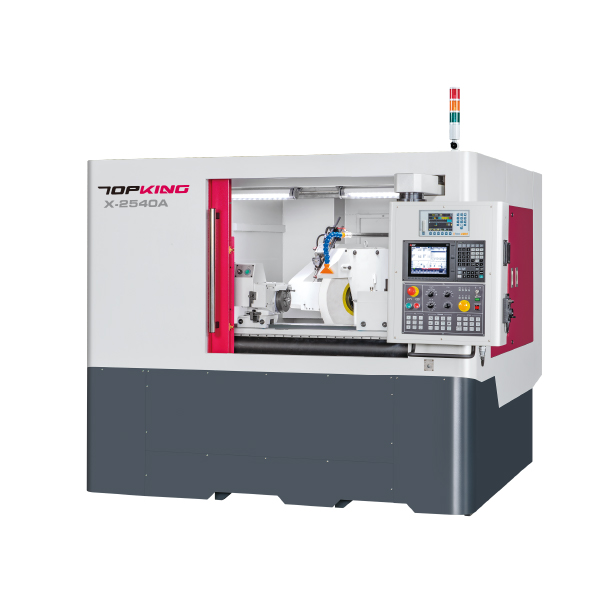

CNC Angular grindingINTRODUCTION
TOPKING's CNC Angular Cylindrical Grinding Machine offers the capability to perform simultaneous O.D. and end-face grinding in a single clamping setup, resulting in time-saving component changeovers, enhanced processing efficiency, and shorter production cycles. The advanced wheel head axes X-axis) and traverse axes (Z-axis) feature cross-slider designs with an angular grinding wheelhead, ensuring rapid and stable movements during processing, and delivering high-precision grinding results.Equipped with a high-performance CNC control system and a user-friendly graphical user interface (GUI), the operating system facilitates easy setup and is suitable for various grinding applications, providing users with a hassle-free machining environment.
| CAPACITY
Swivel Over Table: Ø270 mm
Distance Between Center: 400 mm
Max. Grinding Dia.: Ø250 mm
Max. Grinding Length: 400 mm
MACHINE FEATURE
.png)
USER FRIENDLY OPERATION SYSTEM
The built-in advanced CNC control system is equipped with GUI. The operator can divide the complex component into several grinding processes through the guidance of the graphic, and simplify the process editing of grinding, and dressing in a numerical way. No complicated programming (G code, M code) is required, and the most convenient operating environment is provided.
RIGID MACHINE BASE
■ High rigidity machine base made of Meehanite cast iron through annealing and aging treatment.
■ Slideway though high-frequency hardening and precision grinding process. Machine base with stable material and strengthen construction for deformation-free and outstanding wear resistance.
WORK TABLE
■ The work table is permanently bolted to the machine. The cross slide design is adopted to reduce the travels. It can improve working speed and precision stability.
CROSS-SLIDER DESIGN
■ X axis and Z axis are design as cross-slider to reduce machine space.
■ Two axes cover by enclosed telescopic covers. To protect the transmission structure and prevent contamination from grinding debris and coolant.
■ X axis and Z axis equip with high enclosed linear scales as standard accessories, for controlling positioning accuracy and finish quality.
FLEXIBLE FEED DESIGN
■ X- A series adopts precise linear guides and ball screw design for the two-axis movement. The linear guides are designed to be wear-resistant and have low-friction properties, ensuring that the axis seat moves smoothly. The ball screw can handle high loads and has low backlash, which allows for a quick and flexible feed mode, achieving the required dimensions rapidly. This integrated combination offers a fast and responsive feed mode, delivering outstanding machining quality for small component.
ANGULAR TYPE WHEEL HEAD CONSTRUCTION
■ Bearing type of G.W. spindle adopts precision bearings, which has a long service life and is relatively easy to replace, repair and maintain.
■ The G.W. spindle is made of high-quality alloy steel SNCM-220, which has undergone multiple treatments such as normalization, quenching and tempering, carburizing heat treatment, and cryogenic treatment. Afterwards, precision grinding and mirror treatment are carried out, and the surface hardness reaches above HRC62°. Guarantee no deformation, wear resistance, high precision forever.
WORKHEAD AND TAILSTOCK
■ The workhead is driven by a servo motor with step-less variable speed change.
■ Hydraulic tailstock (opt.) with support for easy operation.
■ Both the workhead and the tailstock are designed with flat air pressure design, which is easy to move, reduces friction and increase using life.
■ The cooling system is installed in the center to prevent the contact surface of the center hole from being heated and deformed.
DIAMOND TOOL HOLDER
( tailstock mounted type)
■ Standard dressing device is mounted on tailstock
■ Diverse dressing device is available, adaptable to the requirements of the component

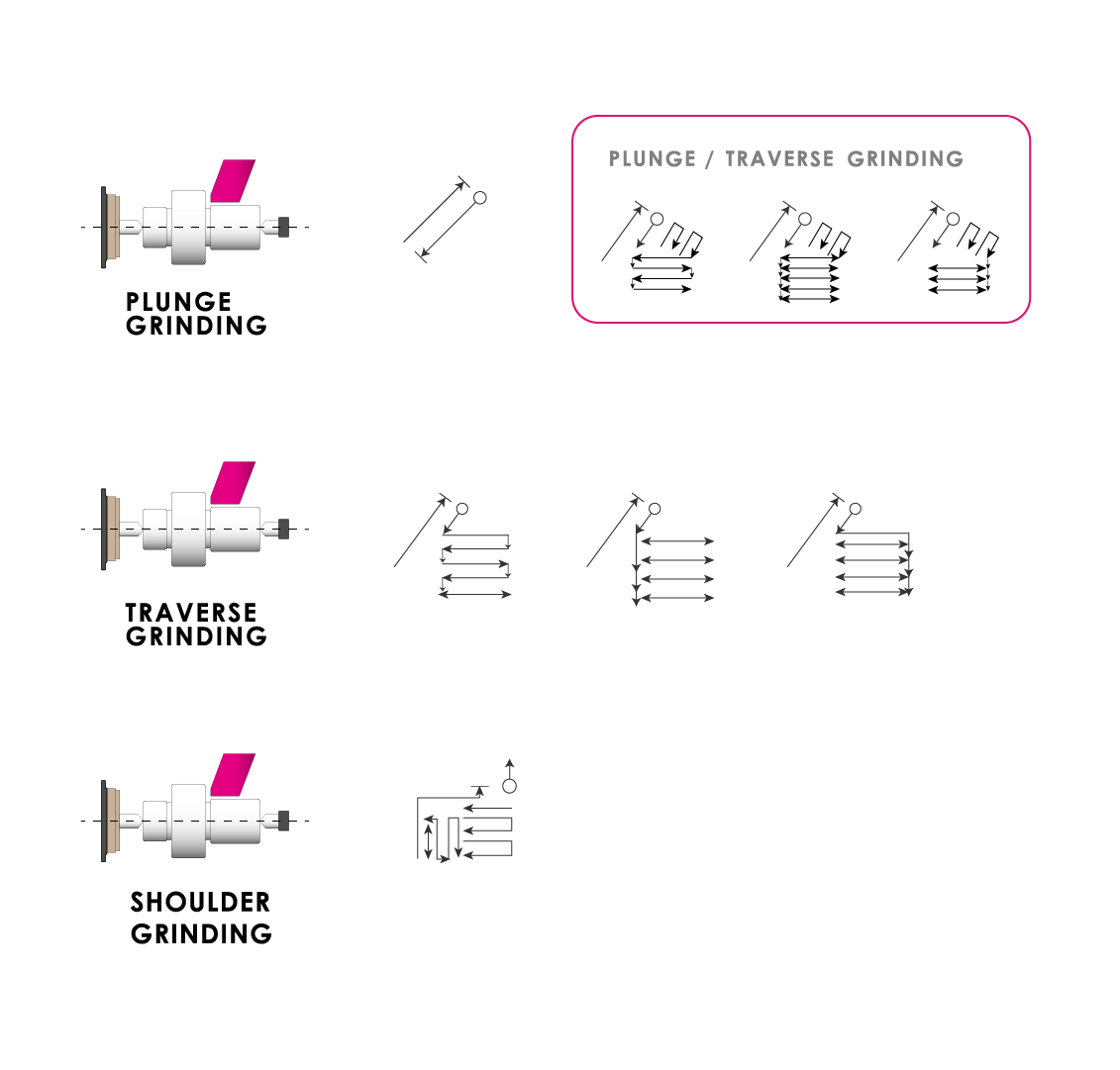

GRINDING CYCLE
(1).png)
SPECIFICATION
| Capacity | |
|---|---|
| Swing Over Table | Ø270 mm |
| Distance Between Centers | 400 mm |
| Max. Grinding Diameter | Ø250 mm |
| Max. Grinding Length | 400 mm |
| Max. Load Held Between Centers | 60 kg |
| Center Height (from table to center tip) | 135 mm |
| Grinding Wheel | |
| Size (O.D. x Width x I.D.) | Ø510 x 50~75 x Ø127 mm |
| Linear Velocity | 33 m/sec (opt.: 45 m/sec) |
| Worktable | |
| Swiveling Angle | -1° ~ +8° |
| Workhead | |
| Swiveling Angle | -30° ~ +90° |
| Center Tapper | MT. No. 3 (opt.: MT. No. 4) |
| Spindle Speed | 10 ~ 300 rpm |
| Max. Load of Spindle (tool holder included) | 15 kgs (Max. Length: 100 mm) |
| Tailstock | |
| Center Tapper | MT. No. 3 (opt.: MT. No. 4) |
| Center Moving | Manual type |
| Tailstock Stroke | 25 mm |
| Micro Adjustment (opt.) | ±0.03 mm |
| X-axis Travel | |
| Max. Travel | 300 mm |
| Rapid Feedrate Speed | 6000 mm/Min |
| Auto. Feeding Speed | 0.001 ~ 2000 mm/Min |
| Min. Feeding Setting | 0.001 mm |
| Z-axis Travel | |
| Max. Travel | 580 mm |
| Rapid Feedrate Speed | 6000 mm/Min |
| Auto. Feeding Speed | 0.001 ~ 2000 mm/Min |
| Min. Feeding Setting | 0.001 mm |
| Drive Motors | |
| Grinding Wheel Spindle | 5.5 kW |
| Workhead Spindle Motor (servo motor) | 1.0 kW |
| Wheelhead Feed X-axis (servo motor) | 1.5 kW |
| Table Feed X-axis (servo motor) | 1.5 kW |
| Ballscrew Lubrication | Auto Lubricator (LUBE) |
| Lubrication Hydraulic Motor | NIL |
| Hydraulic Pump | 0.37 kW |
| Coolant Pump | 0.37 kW |
| Tank Capacities | |
| Lubrication Tank (Optional) | 18 L |
| Coolant Tank | 107 L |
| Machine | |
| Dimension | 2200 x 2150ｘ1900 mm |
| Net Weight | 4300 kg |
| Center Height (from floor to center tip) | 1110 mm |
* The mentioned specifications & dimensions are subject to change without notice.
ACCESSORIES
STANDARD ACCESSORIES
■ CNC Controller (Brand: Mitsubishi) x 1 set
■ Grinding Wheel and Flange x 1 set
■ Carbide Tipped Work Centers (2 pcs/set) x 1 set
■ Diamond Tool Holder ( tailstock mounted type) x 1 set
■ Cam-locked Driving Dogs x1 set
■ Linear Scales for X-axis and Z-axis x 1 set
■ Grinding Wheel Inverter x 1 set
■ Electric System x 1 set
■ Fully Enclosed Splash Guard x 1 set
■ Hydraulic System x 1 set
■ Coolant System x 1 set
■ Work Lamp x 1 set
■ Tools (Leveling pad) and Tool Box x 1 set
OPTIONAL ACCESSORIES
■ Hydraulic Tailstock
■ Cam-locked Driving Dogs
■ Work Holder 2 pcs/set
■ 2-point Steady Rest
■ Adjustable 3-point Steady Rest
■ Adjustable 3-jaw Scroll Chuck
■ Adjustable 4-jaw Scroll Chuck
■ Wheel Balancing Stand and Arbor
■ Auto. Grinding Wheel Balancer
■ Spare Grinding Wheel and Flange
■ Jib Crane for Loading / Unloading G.W.
■ Touch Probe Gauge
■ Auto. In-Process Gauge
■ Gap Control
■ Magnetic Coolant Separator
■ Paper Filter
■ Oil Mist Collector
