Hydrostatic Centerless Grinder | NC series

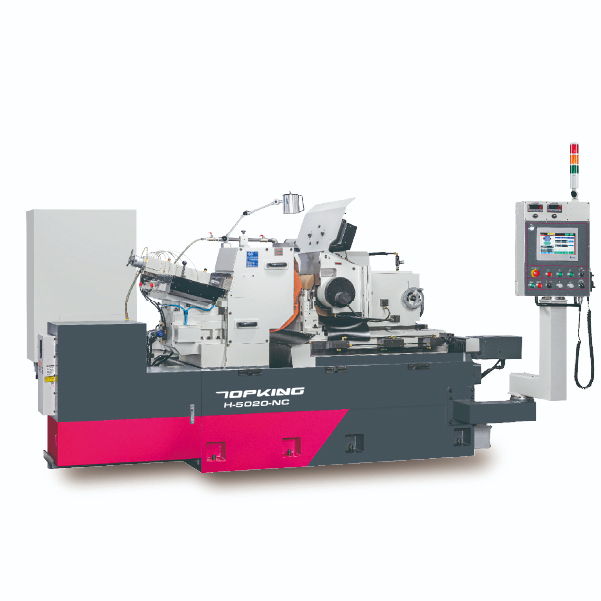

CENTERLESS GRINDER|H-5020-NC

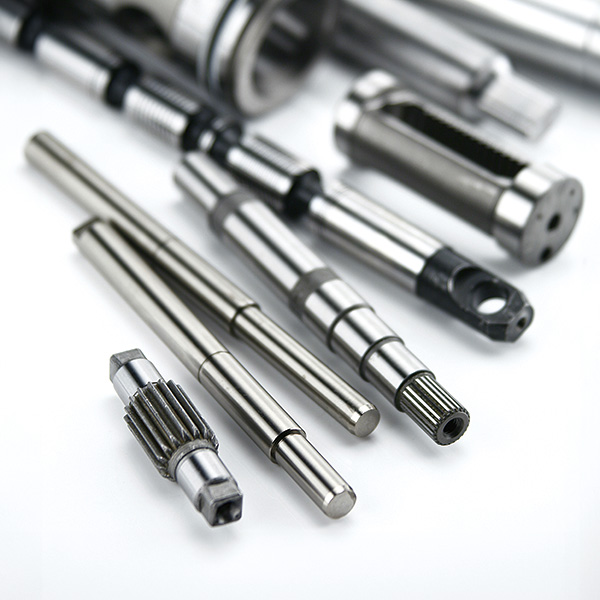

CENTERLESS GRINDING MACHINESINTRODUCTION
The H-5020-NC is engineered for stable, high-precision production. Featuring advanced Hydrostatic Technology on spindles and slides, its high-pressure oil film ensures non-contact operation, eliminating wear and vibration for a smooth, "stick-slip" free process.
Supporting workpieces from Ø2 to Ø75 mm, it offers a 0.0005 mm minimum infeed for micron-level precision and superior surface finish. Built with Meehanite cast iron and an intuitive graphical interface, it allows quick setup without complex coding. With built-in accumulator protection and oil cooling, it is the ultimate investment for high-yield, long-life manufacturing.
| CAPACITY
Standard Grinding Range (dia.): Ø2~Ø75 mm
Grinding Wheel (O.D. × width × I.D.):
Ø510 × 205 × Ø304.8(7A) mm
Linear Velocity: 33 m/sec(45 m/sec)
Regulating Wheel (O.D. × width × I.D.):
Ø330 × 205 × Ø177.8(7A) mm
R.W. Speed:
10~220 rpm
Max. Infeed Length: 200 mm
MACHINE FEATURE
.png)
HIGH-PERFORMANCE GRAPHICAL USER INTERFACE
■ The control system with a teach-in Graphical User Interface(GUI) without program editing, provides the most convenient operate environment.
■ HMI with touch screen, user interface embeds shortcut keys for micro-feeding adjustment. It’s easy to adjust the grinding size.
RIGID MACHINE BASE
■ The machine structure is made of high-quality Meehanite cast iron, which is processed after being heat treated and stress relieved before machining. The slide is hardened by high frequency and precision ground. The material of the machine structure is stable, has no doubt of deformation, and has excellent wear resistance.
.png)
.png)
HYDROSTATIC SPINDLE
Both grinding and regulating wheel spindles use hydrostatic support, with pressurized oil forming a stable film for smooth rotation and reduced mechanical wear.■ Stable Spindle Rotation: Maintains smooth rotation across a wide speed range. and component accuracy.
■ Reduced Mechanical Wear: Non-contact oil film minimizes metal-to-metal contact and wear.
■ Lower Friction & Heat: Reduces friction and heat generation, supporting long-term spindle stability and grinding accuracy.
OIL COOLANT SYSTEM
■ The oil coolant system is equipped with an oil cooler to effectively maintain a constant oil temperature and prevent the spindle from affecting the machining accuracy due to changes in oil temperature.
.png)
.png)
ACCUMULATOR FOR PROTECTION DEVICE
■ The special pressure accumulator design can make the hydrostatic oil return to the hydrostatic system of the main shaft when the pressure drops due to power failure. It can avoid the damage caused by the momentary loss of static pressure oil film caused by power failure when the spindle is running at high speed.
HYDROSTATIC INFEED SYSTEM
Hydrostatic guideways provide smooth, low-friction movement of the regulating wheel slide. Combined with a servo motor and harmonic reducer, the system supports precise infeed control with minimal backlash.
■ Smooth Infeed Motion: Hydrostatic guideways reduce friction and ensure stable slide movement.
■ Reduced Backlash: A servo motor with a harmonic reducer minimizes drive backlash and increases torque.
■ Fine Infeed Control: Manual fine adjustment of 0.001 mm and a minimum programmable NC infeed increment of 0.0005 mm.


GRINDING WHEEL DRESSER
The dresser features heat-treated alloy cast iron and a recessed dovetail slideway with a wide bearing surface for improved rigidity, wear resistance, and dressing stability. Hydraulic traverse is standard, with optional servo-driven profile dressing and continuously adjustable dressing speed.
REGULATING WHEEL DRESSER
The dresser uses heat-treated alloy cast iron for wear resistance and structural stability. Adjustable dressing angles accommodate different workpiece requirements, while hydraulic traverse with continuously adjustable speed or optional servo-driven profile dressing helps maintain workpiece cylindricity.


AXIAL FUNCTIONS
■ X-axis: R.W. lower slide in-feed
■ Z-axis: G.W. Vertical dressing
One axis(X): Infeed Control
The X axis controls automatic infeed and size adjustment. Grinding wheel dressing is handled by the standard dressing unit.
Two axes (X/Z): Infeed & Dressing Control
Adds Z axis control for automatic grinding wheel dressing, enabling numerical control of both infeed and dressing amount.
SPECIFICATION
| Capacity | |
|---|---|
| Standard Grinding Range (dia.) | Ø2 ~ Ø75 mm |
| Max. lnfeed Length | 200 mm |
| Auto. Infeed Min. Increment | 0.0005 mm |
| Grinding Wheel | |
| Size (O.D. x width x I.D.) | Ø510 x 205 x Ø304.8(7A) mm |
| Linear Velocity | 33m/sec (45 m/sec) |
| Regulating Wheel | |
| Size (O.D. x width x I.D.) | Ø330 x 205 x Ø177.8(7A) mm |
| Speed | 10 ~ 220 rpm |
| Tilt Angle | +5° ~ -3° |
| Swivel Angle | ±5° |
| Hand wheel Graduation | |
| Upper Slide Feed | 3.5 mm/rev. (0.05 mm/graduation) |
| Lower Slide Micro-Feed | 0.1 mm/rev. (0.001 mm/graduation) |
| Trimming Device | 2 mm/rev. (0.01 mm/graduation) |
| Drive Motors | |
| Grinding Wheel | 11.25 kW (6P) |
| Regulating Wheel | 5.0 kW (servo motor) |
| Lower Slide Feed Motor (X-axis)(NC one axis) | 1.0 kW |
| Lubrication Oil Pump | 1.5 kW |
| Coolant Pump | 0.18 kW |
| Hydraulic Oil Chiller | 0.37 kW |
| Tank Capacities | |
| Hydraulic Oil Tank | 90 L |
| Coolant Tank | 160 L |
| Machine | |
| Dimension (L x W x H) | 3810 x 1620 x 2160 mm |
| Net Weight | |
* The mentioned specifications & dimensions are subject to change without notice.
ACCESSORIES
STANDARD ACCESSORIES
■ Grinding Wheel and Flange x 1 set
■ Regulating Wheel and Flange x 1set
■ Infeed Work Rest and Carbide Blade x 1 set
■ Thrufeed Work Rest and Carbide Blade x 1 set
■ Diamond Tools (2 pcs/set) x 1 set
■ Electric System x 1 set
■
Lubrication System (with an oil coolant and an accumulator) x 1 set
■ Coolant System x 1 set
■ Work Lamp x 1 set
■ Tools (Leveling Pad) and Tool Box x 1 set
■ Wheel Balancing Stand & Arbor
■ Profile Grinding Attachment
■ Grinding Wheel Ionization Dressing Device
■ Hydraulic Work Ejector (Infeed Grinding)
■ Manual Feeder For Infeed Grinding (Up and Down)
■ Auto. Loading Attachment (Thrufeed Grinding)
■ Automatic Feeder (Thrufeed Grinding)
■ Auto. Unloading Attachment (Thrufeed Grinding)
■ V Type Supporter for Long Bar Grinding
■ Auto. Loading and Unloading Attachment (Infeed Grinding)
■ Vibratory Feeder (Thrufeed Grinding)
■ Fully Splash Guard
■ Magnetic Coolant Separator
■ Paper Filter
■ Hydro cyclone Coolant Separator
■ Jib Crane for Grindnig Wheel
